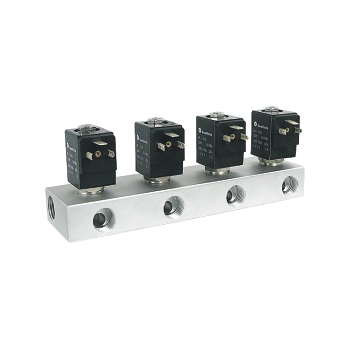

【SLE系列二位二通直动式关联式电磁阀】-上海浦蝶阀门有限公司
二位二通常闭型电磁阀,断电关闭,通电打开
阀体材质为铜,铝(定制) 环境温度:0～65℃按阀上所标流向箭头,一进多路出(N) 线圈可配德国原装NASS线圈 常规备货:AC220V/230/240V 50/60HZ 22VA ,24VA DC24V 13W
 型号规格 接管
口径 | 流量
通径
mm | CV值 | 压力差（Kgf/cm2) | 最大
流体
温度 | 线圈
配置 | 功率 | 线圈
等级 | 订货型号
以下表中
电压为
220VAC
50/60HZ | | 最大工作压力 | VA AC220V | W DC24V | 最小
压力 | 空气
瓦斯 | 水、热水液体 | 轻油≤20CST | | AC220V | DC24V | AC220V | DC24V | AC220V | DC24V | | 1/8” | 2.0 | 0.15 | 0 | 20 | 20 | 20 | 15 | 15 | 10 | 120 | D | 22 | 13 | F | SLE1DF02V1A02 | | 3.0 | 0.23 | 0 | 10 | 10 | 10 | 10 | 7 | 7 | 120 | D | 22 | 13 | F | SLE1DF02V1A03 | | 4.0 | 0.44 | 0 | 7 | 7 | 7 | 5 | 5 | 5 | 120 | D | 22 | 13 | F | SLE1DF02V1A04 | | 5.0 | 0.5 | 0 | 4 | 2.5 | 4 | 2.5 | 2.5 | 2.5 | 120 | D | 22 | 13 | F | SLE1DF02V1A05 | | 1/4” | 2.0 | 0.15 | 0 | 20 | 20 | 20 | 15 | 15 | 10 | 120 | D | 22 | 13 | F | SLE1DF02V1B02 | | 3.0 | 0.23 | 0 | 13 | 13 | 13 | 10 | 7 | 5 | 120 | D | 22 | 13 | F | SLE1DF02V1B03 | | 4.0 | 0.44 | 0 | 7 | 7 | 7 | 5 | 5 | 5 | 120 | D | 22 | 13 | F | SLE1DF02V1B04 | | 5.0 | 0.5 | 0 | 4 | 2.5 | 4 | 2.5 | 2.5 | 2.5 | 120 | D | 22 | 13 | F | SLE1DF02V1B05 | | 6.0 | 0.8 | 0 | 3 | 3 | 3 | 1.5 | 2 | 1 | 120 | D | 22 | 13 | F | SLE1DF02V1B06 | | 3/8” | 5.0 | 0.5 | 0 | 4 | 2.5 | 4 | 2.5 | 2.5 | 2.5 | 120 | D | 22 | 13 | F | SLE1DF02V1C05 | | 6.0 | 0.8 | 0 | 3 | 3 | 3 | 1.5 | 2 | 1 | 120 | D | 22 | 13 | F | SLE1DF02V1C06 | | 9.0 | 1.65 | 0 | 1 | 1 | 0.8 | 0.4 | 0.5 | 0.3 | 120 | D | 22 | 13 | F | SLE1DF02V1C09 | | 1/2” | 5.0 | 0.5 | 0 | 4 | 2.5 | 4 | 2.5 | 2.5 | 2.5 | 120 | D | 22 | 13 | F | SLE1DF02V1D05 | | 6.0 | 0.8 | 0 | 3 | 3 | 3 | 1.5 | 2 | 1 | 120 | D | 22 | 13 | F | SLE1DF02V1D06 | | 9.0 | 1.65 | 0 | 1 | 1 | 0.8 | 0.4 | 0.5 | 0.3 | 120 | D | 22 | 13 | F | SLE1DF02V1D09 |
SLE系列线圈参数表 | 线圈型式和编号 | 电压 | 功率 | 所配电磁阀 | | 50HZ VA | 60HZ VA | 直流 | | 起动 | 保持 | 起动 | 保持 | W | | D04-3101 | AC220V | 55 | 22 | 55 | 22 | | SLE常闭系列 | D04-3104
| AC24V | 45 | 18 | 45 | 18 | | D04-3106 | DC24V | | 13 | | D04-3107 | DC12V | 13 |
