  产品名称: 带导流孔平板闸阀KZ43F-16C
  产品型号: KZ43F


  咨询电话:021-34556223,34556225 销售部
 相关产品
 手动灰渣平板闸阀KHZ43F
 液动灰渣平板闸阀KHZ743F
 自动补偿平衡式双平板闸阀
 带导流孔平板闸阀KZ43F-16C


【带导流孔平板闸阀KZ43F-16C】-上海浦蝶阀门有限公司
产品型号:KZ43F
产品口径:DN50-1000
产品压力:1.6~6.4Mpa
产品材质:铸钢、不锈钢、合金钢等

1.【带导流孔平板闸阀】标准

产品规范

设计规范

结构长度

连接法兰

试验与检验

压力 -温度

产品标识

JB/T 5298

JB/T 5298

JB/T79

JB/T 5298

GB 9131

GB/T 12220

API6D

API 6D

ANSI B16.5

AP16D

ANSI B16.34

MSS SP-25

2.【带导流孔平板闸阀】性能规范

压力等级

常温下降压力试验

适用温度 (℃)

适用介质

壳体

左密封

左密封

低压密封

“G”型

“D”型

普通型

“抗硫”

“基本”

公称压力(MPa)

1.6

2.4

1.76

1.76

0.6

-29~250

-46~121

-29~121

含 H20和

石油

2.5

3.75

2.75

2.75

0.6

4.0

6.0

4.4

4.4

0.6

6.4

9.6

7.04

7.04

0.6

磅级

150

3.1

2.3

2.3

0.6

300

5.52

7.6

5.52

0.6

3.【带导流孔平板闸阀】零件材料

零件名称

零部件材料

JB/T7298

API6D

阀门 /阀盖

WCB

WC6

A352-1CB

A351-CF8M

闸板

2Cr13+ENP

20CrMoV+ST1

ANSI410+ENP

ANSI 316+ENP

阀杆

2Cr13

2Cr13

A182-F6a

A182-F316S

阀座

25+PTFE

20CrMoV+ST1

A105+PTFE

A182-F316+PTFE

填料

NBR/FPM

柔性石墨

聚四氟乙烯 /PTFE+FPM

垫片

18-8/柔性石墨

螺栓

35

35CrM0

A193-B7M

A193-B8

适用温度

-29~250℃

-29-550℃

-46-350℃

-40-200℃

适用介质

水、油品、蒸汽

蒸汽、油品

丙烷、乙烯

硝酸类

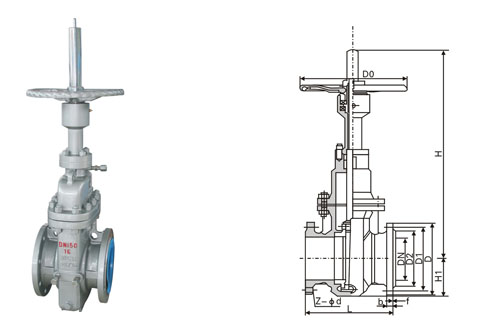

4.【带导流孔平板闸阀】主要外形和连接尺寸      单位Unit:mm

公称压力PN

DNLDD1D2D0fbHH1Z-φd
1.6MPa50178160125100250316584804-18
65190180145120250318634954-18
802031951601352503206881008-18
1002292151801553003208631148-18
1252542452101853503229401328-18
15026728024021035032410301508-23
200292335295265350326127716812-23
250330405355320400330149120312-25
300356460410375450430170123712-25
350381520470435500434187526516-25
400406580525485305436218030016-30
450432640585545305440244032520-30
500457705650608305444286036020-34
600508840770718305548345042520-41
700610910840788305550396046024-4l
8006601020950898305552455051224-41
90071111201050998250554525056528-41
1000811125511701110250556587063028-48
2.5MPa50178160125100250320584804-18
65190180145120300322634958-18
802031951601353503226881008-18
1002292301901603503248631148-23
1252542702201883503289401328-25
15026730025021840033010301508-25
200292360310278450334127716812-25
250330425370332500336149120312-30
300356485430390305440170123716-30
350381550490448305444187526516-34
400406610550505305448218030016-34
450432660600555305450244032520-34
5004577306606lO305452286036020-4l
600508840770718305556345042520-41
700610955875815305560396046024-48
8006601070990930305564455051224-48
900711118010901025 566525059528-54
1000811130512101140 568587066028-58

主要外形和连接尺寸              单位Unit:mm

公称压力PN

DNLDD1D2YD0ff2bHH1Z-φd
4.0MPa50250160125100882503420584804-18
652801801451201102503422634958-18
8031019516013512l25034226791028-18
10035023019016015030034.5248631158-23
12540027022018817635034.5289401338-25
15045030025021820435034.53010401528-25
20055037532028226035034.538128218812-30
25065044538534531340034.542149522312-34
30075051045040836445044.546170125016-34
3508505705104654225004552188028016-41
4009506555855354743054558220031020-41
45010506806105605243054560248033520-41
50011507556706125763054562289038020-48
60013508907957306785662346045020-54
70014509959008357683055668398550024-54
8001650113510309608763055676475057024-58
6.4MPa50250175135105882503426584904-23
6528020016013011025034286341058-23
8031021017014012125034306791108-23
10035025020016815030034.5327631308-25
12540029524020217635034.5369701508-30
15045034028024020435034.53810381758-34
20055040534530026035034.544128221012-34
25065047040035231340034.548149524012-41
30075053046041236445044.554196527016-41
3508505955254754225004560218530016-41
4009506705855254743054566257333516-48
45010507156305705243054568280036020-48
50011508007056405763054570328040520-54
60013509308207506783055676380047020-58
10.0MPa502501951451128825034285901004-25
6528022017013811025034326401158-25
8031023018014812125034346801208-25
10035026521017215030034.5388701358-30
12540031025021017635034.5429801558-34
15045035029025020435034.546110018012-34
20055043036031226035034.554131522012-41
25065050043038231340034.560160525512-41
30075058550044236445044.570192529516-48
3508506655604984225004576228033516-54
4009507156205584743054580258036016-54

【带导流孔平板闸阀】【价格】【参数】【供应信息】请来电详询
